Building RESTful APIs with Eclipse Vertx
In this post, we will explore how to build a simple RESTful example application with Eclipse Vertx and reactive Postgres Client.
Unlike other frameworks in which reactive is an addition to the existing features, Eclipse Vertx is born for reactive applications, read the official introduction guide to get know the reactive support in Vertx .

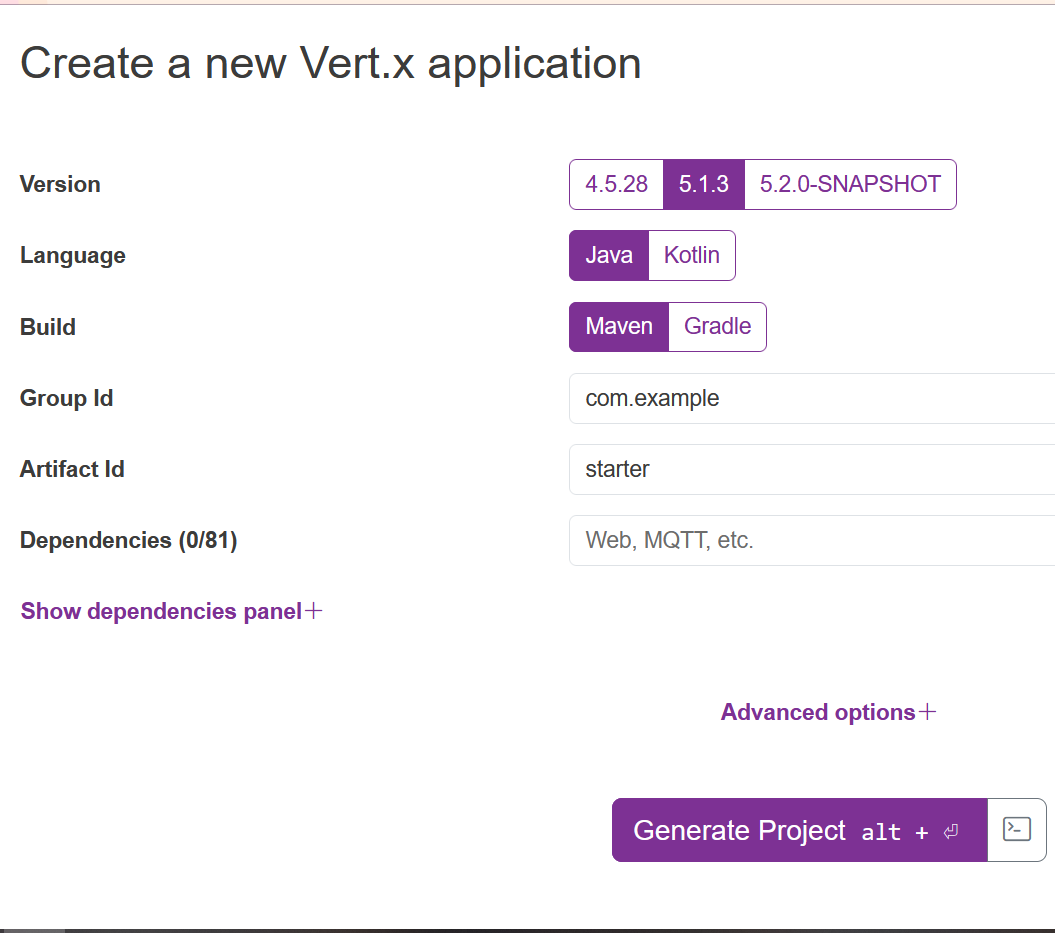

Similar to the Spring Boot intializr, Eclipse Vertx also provides a scaffold tool to generate the project skeleton for you.
Open your browser, navigate to the Vertx Starter page. In the Dependencies field, select Vertx Web, Reactive PostgreSQL Client, and optionally expand the Advance options and select the latest Java version(at the moment it is 25).
Leave others options as they are, it will use the default values, then hit Generate Project button to generate the project into an archive for downloading.
Download the project archive, and extract the files into local disc, and import into your IDEs, eg. Intellij IDEA.
Open the pom.xml. As you see, it uses maven-shade-plugin to package the built results into a fat jar, and the Main-Class is io.vertx.launcher.application.VertxApplication and the Main-Verticle entry declares the main verticle to deploy. When running the application via java -jar target\xxx.jar , it will use the VertxApplication to deploy the declared MainVerticle. A Verticle is a Vertx specific deployment unit to group the resources, such as Network, HTTP, etc.
Let's move to the MainVerticle class.
Generally , to code our business logic, you just need to override the start() method that returns a Future<?>.
In our application, we will start a HTTP Server to serve the HTTP requests. Replace the content of the start() method with the following.
// Create the HTTP server
return vertx.createHttpServer()
// Handle every request using the router
.requestHandler(router)
// Start listening
.listen(8888)
// Print the port
.onSuccess(server -> {
System.out.println("HTTP server started on port " + server.actualPort());
})
.onFailure(event -> {
System.out.println("Failed to start HTTP server:" + event.getMessage());
});
The request handling work is done by the above .requestHandler(Handler<HttpServerRequest>). The Router is a specific Handler<HttpServerRequest> which simplifies the handling HTTP requests and allows chaining a sequence of handlers.
Add a routes method to handle requests of all routes in a central place, it returns the router.
//create routes
private Router routes(PostsHandler handlers) {
// Create a Router
Router router = Router.router(vertx);
// register BodyHandler globally.
//router.route().handler(BodyHandler.create());
router.get("/posts").produces("application/json").handler(handlers::all);
router.post("/posts").consumes("application/json").handler(BodyHandler.create()).handler(handlers::save);
router.get("/posts/:id").produces("application/json").handler(handlers::get)
.failureHandler(frc -> {
Throwable failure = frc.failure();
if (failure instanceof PostNotFoundException) {
frc.response().setStatusCode(404).end();
}
frc.response().setStatusCode(500).setStatusMessage("Server internal error:" + failure.getMessage()).end();
});
router.put("/posts/:id").consumes("application/json").handler(BodyHandler.create()).handler(handlers::update);
router.delete("/posts/:id").handler(handlers::delete);
router.get("/hello").handler(rc -> rc.response().end("Hello from my route"));
return router;
}
For post and put HTTP methods, the BodyHandler is required to handling consuming the HTTP request body.
Extract all handing details into a new PostsHandler class.
class PostsHandler {
private static final Logger LOGGER = Logger.getLogger(PostsHandler.class.getSimpleName());
private final PostRepository posts;
private PostsHandler(PostRepository postsRepository) {
this.posts = postsRepository;
}
//factory method
public static PostsHandler create(PostRepository posts) {
return new PostsHandler(posts);
}
public void all(RoutingContext rc) {
// var params = rc.queryParams();
// var q = params.get("q");
// var limit = params.get("limit") == null ? 10 : Integer.parseInt(params.get("q"));
// var offset = params.get("offset") == null ? 0 : Integer.parseInt(params.get("offset"));
// LOGGER.log(Level.INFO, " find by keyword: q={0}, limit={1}, offset={2}", new Object[]{q, limit, offset});
this.posts.findAll()
.onSuccess(
data -> rc.response().end(Json.encode(data))
);
}
public void get(RoutingContext rc) {
var params = rc.pathParams();
var id = params.get("id");
this.posts.findById(UUID.fromString(id))
.onSuccess(post -> rc.response().end(Json.encode(post)))
.onFailure(rc::fail);
}
public void save(RoutingContext rc) {
//rc.getBodyAsJson().mapTo(PostForm.class)
var body = rc.body().asJsonObject();
LOGGER.log(Level.INFO, "request body: {0}", body);
var form = body.mapTo(CreatePostCommand.class);
this.posts.save(Post.of(form.title(), form.content()))
.onSuccess(
savedId -> rc.response()
.putHeader("Location", "/posts/" + savedId)
.setStatusCode(201)
.end()
);
}
public void update(RoutingContext rc) {
var params = rc.pathParams();
var id = params.get("id");
var body = rc.body().asJsonObject();
LOGGER.log(Level.INFO, "\npath param id: {0}\nrequest body: {1}", new Object[]{id, body});
var form = body.mapTo(CreatePostCommand.class);
UUID uuid = UUID.fromString(id);
this.posts.findById(uuid)
.compose(
post -> {
var toUpdated = new Post(post.id(), form.title(), form.content(), post.createdAt());
return this.posts.update(toUpdated);
}
)
.onSuccess(data -> rc.response().setStatusCode(204).end())
.onFailure(throwable -> rc.fail(404, throwable));
}
public void delete(RoutingContext rc) {
var params = rc.pathParams();
var id = params.get("id");
var uuid = UUID.fromString(id);
this.posts.findById(uuid)
.compose(
post -> this.posts.deleteById(uuid)
)
.onSuccess(data -> rc.response().setStatusCode(204).end())
.onFailure(throwable -> rc.fail(404, throwable));
}
}
From the RoutingContext, it is easy to read the request params etc. PostRepository is responsible for interacting with your backend database Postgres, when the database operation is done, then send result to the HTTP response through RoutingContext.response().
Let's have a look at the PostRepository class.
public class PostRepository {
private static final Logger LOGGER = Logger.getLogger(PostRepository.class.getName());
private static Function<Row, Post> MAPPER = (Row row) ->
new Post(
row.getUUID("id"),
row.getString("title"),
row.getString("content"),
row.getLocalDateTime("created_at")
);
private final Pool client;
private PostRepository(Pool sqlClient) {
this.client = sqlClient;
}
//factory method
public static PostRepository create(Pool client) {
return new PostRepository(client);
}
public Future<List<Post>> findAll() {
String sql = "SELECT * FROM posts ORDER BY id ASC";
return client.query(sql)
.execute()
.map(rs -> StreamSupport.stream(rs.spliterator(), false)
.map(MAPPER)
.toList()
);
}
public Future<Post> findById(UUID id) {
Objects.requireNonNull(id, "id can not be null");
String sql = "SELECT * FROM posts WHERE id=$1";
return client.preparedQuery(sql).execute(Tuple.of(id))
.map(RowSet::iterator)
.map(iterator -> {
if (iterator.hasNext()) {
return MAPPER.apply(iterator.next());
}
throw new PostNotFoundException(id);
}
);
}
public Future<UUID> save(Post data) {
String sql = "INSERT INTO posts(title, content) VALUES ($1, $2) RETURNING (id)";
return client.preparedQuery(sql)
.execute(Tuple.of(data.title(), data.content()))
.map(rs -> rs.iterator().next().getUUID("id"));
}
public Future<Integer> saveAll(List<Post> data) {
var tuples = data.stream()
.map(d -> Tuple.of(d.title(), d.content()))
.toList();
String sql = "INSERT INTO posts (title, content) VALUES ($1, $2)";
return client.preparedQuery(sql)
.executeBatch(tuples)
.map(SqlResult::rowCount);
}
public Future<Integer> update(Post data) {
String sql = "UPDATE posts SET title=$1, content=$2 WHERE id=$3";
return client.preparedQuery(sql)
.execute(Tuple.of(data.title(), data.content(), data.id()))
.map(SqlResult::rowCount);
}
public Future<Integer> deleteAll() {
String sql = "DELETE FROM posts";
return client.query(sql)
.execute()
.map(SqlResult::rowCount);
}
public Future<Integer> deleteById(UUID id) {
Objects.requireNonNull(id, "id can not be null");
String sql = "DELETE FROM posts WHERE id=$1";
return client.preparedQuery(sql)
.execute(Tuple.of(id))
.map(SqlResult::rowCount);
}
}
The Pool is a Postgres client (created via PgBuilder) to interact with the Postgres database, the operations are very similar to the traditional JDBC, but it is based on the Vertx's Future API. Similar to Java 8 CompletionStage or Reactor Mono /Flux, Vertx Future provides very limited APIs for producing, transforming and observing the completed result in an asynchronous mode.
More details about the Reactive PostgreSQL Client, read PostgreSQL Client docs.
In Vertx almost all async methods provide a variant to accept a
Promiselike callback as parameter instead of returning aFutureinstance. But personally I think thePromiseis evil if the handling progress is passed into a sequence of transitions, thus thePromisewill nest anotherPromise, and so on. It will put you in an infinitePromisehole.
Create a method in the MainVerticle to produce a Pool instance.
private Pool pgPool() {
PgConnectOptions connectOptions = new PgConnectOptions()
.setPort(5432)
.setHost("localhost")
.setDatabase("blogdb")
.setUser("user")
.setPassword("password");
// Pool Options
PoolOptions poolOptions = new PoolOptions().setMaxSize(5);
// Create the pool from the data object
return PgBuilder.pool()
.with(poolOptions)
.connectingTo(connectOptions)
.using(vertx)
.build();
}
Create a class to initialize some sample data. In Vert.x 5, the DataInitializer.run() returns a Future<Void> instead of blocking with CountDownLatch, allowing proper chaining in the startup sequence.
public class DataInitializer {
private final static Logger LOGGER = Logger.getLogger(DataInitializer.class.getName());
private final Pool client;
public DataInitializer(Pool client) {
this.client = client;
}
public static DataInitializer create(Pool client) {
return new DataInitializer(client);
}
public Future<Void> run() {
LOGGER.info("Data initialization is starting...");
Tuple first = Tuple.of("Hello Quarkus", "My first post of Quarkus");
Tuple second = Tuple.of("Hello Again, Quarkus", "My second post of Quarkus");
return client
.withTransaction(
conn -> conn.query("DELETE FROM posts").execute()
.flatMap(r -> conn.preparedQuery("INSERT INTO posts (title, content) VALUES ($1, $2)")
.executeBatch(List.of(first, second))
)
.flatMap(r -> conn.query("SELECT * FROM posts").execute())
)
.onSuccess(data -> {
StreamSupport.stream(data.spliterator(), true)
.forEach(row -> LOGGER.log(Level.INFO, "saved data:{0}", new Object[]{row.toJson()}));
LOGGER.info("Data initialization is done sucessfully...");
}
)
.onFailure(
throwable -> LOGGER.warning("Data initialization is failed:" + throwable.getMessage())
)
.mapEmpty();
}
}
In the above codes, use the withTransaction method to wrap a series of database operations in a single transaction.
Let's assemble all the resources in the MainVerticle's start method. Since DataInitializer.run() now returns Future<Void>, we chain it with .compose() before starting the HTTP server.
@Override
public Future<?> start() throws Exception {
LOGGER.log(Level.INFO, "Starting HTTP server...");
//Create a PgPool instance
var pgPool = pgPool();
//Creating PostRepository
var postRepository = PostRepository.create(pgPool);
//Creating PostHandler
var postHandlers = PostsHandler.create(postRepository);
// Initializing the sample data
var initializer = DataInitializer.create(pgPool);
// Configure routes
var router = routes(postHandlers);
// Create the HTTP server
return initializer.run()
.compose(v -> vertx.createHttpServer()
// Handle every request using the router
.requestHandler(router)
...
);
}
By default Vertx Web uses Jackson to serialize and deserialize the request/response payload. Unfortunately it does not register a Java DateTime module by default.
Add the following dependencies in the pom.xml file. The Jackson version is managed via the jackson-bom in dependencyManagement.
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>${jackson.version}</version>
</dependency>
<dependency>
<groupId>com.fasterxml.jackson.datatype</groupId>
<artifactId>jackson-datatype-jsr310</artifactId>
<version>${jackson.version}</version>
</dependency>
Add a jackson.version property to the properties section, and include the jackson-bom in dependencyManagement.
<dependencyManagement>
<dependencies>
<dependency>
<groupId>com.fasterxml.jackson</groupId>
<artifactId>jackson-bom</artifactId>
<version>${jackson.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
Then add a static block to configure DateTime serialization and deserialization in the MainVerticle class.
static {
LOGGER.info("Customizing the built-in jackson ObjectMapper...");
var objectMapper = DatabindCodec.mapper();
objectMapper.disable(SerializationFeature.WRITE_DATES_AS_TIMESTAMPS);
objectMapper.disable(SerializationFeature.WRITE_DATE_TIMESTAMPS_AS_NANOSECONDS);
objectMapper.disable(DeserializationFeature.READ_DATE_TIMESTAMPS_AS_NANOSECONDS);
JavaTimeModule module = new JavaTimeModule();
objectMapper.registerModule(module);
}
Let's start the application.
Simply fetch the source codes, it provides a docker compose file.
Run the following command to start a Postgres instance in Docker container.
It will prepare the essential tables through the initial scripts when the database is starting.
Now switch to the project folder, run the following command to start the application.
Or build the project firstly, and run the final jar file.
After the application is started, open a terminal, and use curl to test the /posts endpoints.
curl http://localhost:8888/posts -H "Accept: application/json"
[{"id":"1f99032b-3bb0-4795-ba9f-b0437b59cfbe","title":"Hello Quarkus","content":"My first post of Quarkus","createdAt":"2021-07-02T09:35:21.341037"},{"id":"adda9ca6-2c4c-4223-9cb6-b8407c15ba03","title":"Hello Again, Quarkus","content":"My second post of Quarkus","createdAt":"2021-07-02T09:35:21.341037"}]
Get the complete source codes from my Github.
